Every time the interdisciplinary team embarks on the complex process of reconstructing a patient with either a debilitated or terminal dentition, the outcome depends on the amount of detail in the communication. There are four key elements of esthetic dentistry that must be specified when transferring esthetic and functional parameters to the ceramist to ensure a more successful outcome.

Transitioning a patient with either terminal dentition or a fully edentulous condition involves typically using a set of provisional restorations. These typically range from:

  • A conversion of pre-existing dentures.
  • A conversion of a set of immediate dentures.
  • A new CAD/CAM-generated provisional restoration.

Regardless of which of these is being used, their fabrication entails some “guess-estimation” to attain ballpark esthetic and functional parameters during the initial provisionalization stage.

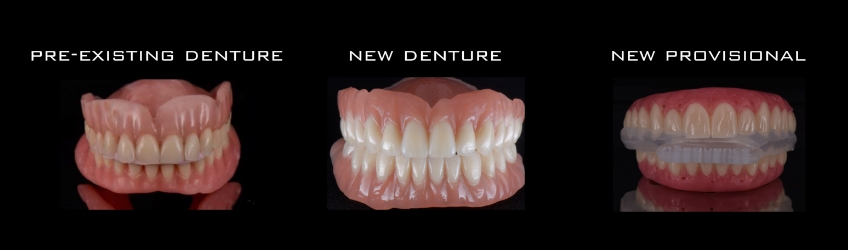

close up of pre-existing denture (left), new denture (middle), and new provisional (right)
Figure 1: Different types of provisionals for full arch restorations on implants.

Because of the vast number of prosthetic design details (both esthetic and functional) that need to be considered during the fabrication of the definitive prosthesis, using a prototype (blueprint template) is the ultimate means of communication between the clinician and the patient, as well as between the clinician and the technician.

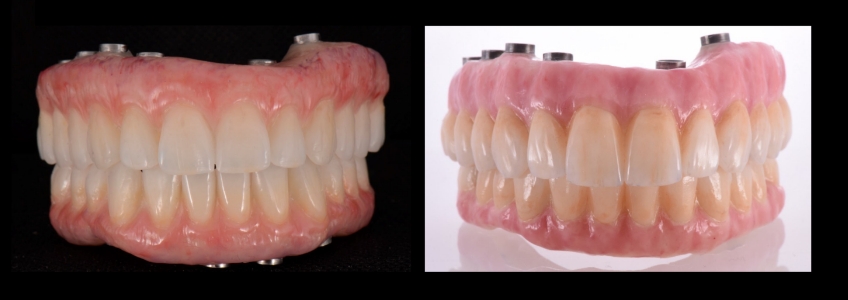

close up of dentures
Figure 2: The esthetic and functional parameters from the prototype need to be transferred to the definitive ceramic restorations.

The 4 Key Elements of Esthetic Dentistry

By breaking things up into the four essential key elements of esthetic dentistry, the team has a much better chance to communicate successfully and therefore calibrate everyone's expectations through the following parameters:

  1. Color
  2. Contour
  3. Arrangement
  4. Position and Functional Parameters

1. Color: The Shade of Their New Smile

Shade selection must be thoroughly discussed with patients, leaving no room for misunderstanding. Agreeing on the desired shade can be tricky. In this era of the so-called “Hollywood smile,” many patients are looking for a white tooth color that may not be our preferred selection as clinicians since we know that such extremely bright shades are unnatural and typically produce a “fake” look. We need to spend time educating the patient before they make their final decision, but in the end, while we may express our informed opinion, it is the patient's choice.

The last thing we want to occur during the insertion appointment of a sophisticated CAD/CAM-generated, implant-supported reconstruction is for our patients to be surprised and unhappy about the shade of their new smile. This is especially true when patients feel the teeth are not white enough since there is no simple correction to address this concern—it usually entails redoing a sizable portion of the work, generating enormous frustration for everyone involved, starting with the patient.

There is typically so much expectation built around the insertion appointment that not giving patients the “smile of their dreams” lets them down. But that same expectation is built up on our end; the treating team is usually also excited to insert the ceramic reconstruction, as it represents the culmination of an elaborate treatment that should be life-changing for our patient and therefore extremely rewarding for us.

It is also important to point out that when doing a prototype try-in, we are dealing with a different material than the definitive prosthesis. The prototype will typically be made of PMMA, while the definitive reconstruction will be made of Zirconia. And even though the technician will use the same shade from our shade guide, some important optical properties will be perceived differently when comparing both materials. Properties such as translucency, opalescence, and fluorescence will vary, and these variances should also be thoroughly communicated to the patient for them to appreciate the nuances between both materials.

patient smile with variation in optical properties of prototype and ceramic restoration
Figure 3: Optical properties of the materials vary between the prototype and the ceramic restorations and need to be communicated to the patient.

2. Contour: Choosing a Square, Ovoid or Triangular Shape

This refers to the shape of the teeth. While there are wide-ranging libraries of shapes, we try simplifying the process by keeping things in the realm of three generic shapes: square, ovoid, and triangular.

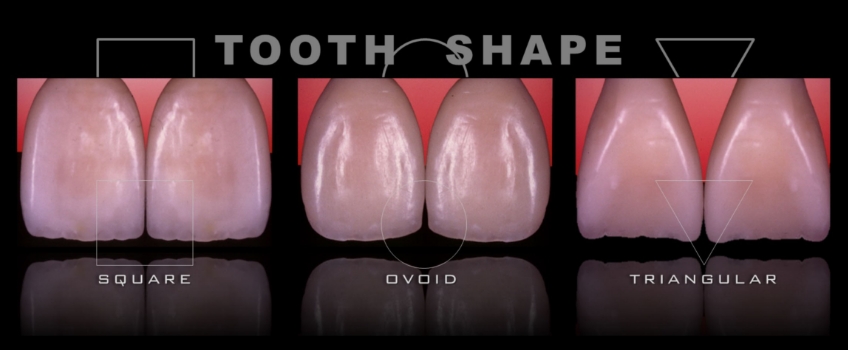

example of tooth shapes demonstrated on front maxillary teeth - square (left), ovoid (middle), and triangular (right)
Figure 4: The three generic tooth shapes

This parameter needs to be conveyed to the patients so we can get as much input from them as possible. As part of the consultative process, it can be of significant help to get photographs of the patient in their younger years and/or photographs of family members such as siblings or children, as there are definitive genetic patterns that we could easily gather and that will aid in our contour discussion and selection.

An important thing to note: if patients express a specific desire for triangular shapes, and we are not considering adding any pink ceramics to the definitive reconstruction, it will be next to impossible to attain natural long interproximal papillae, which are typically seen between natural triangular teeth. This is because normally, for these shaped teeth, there is a shorter contact area between teeth than what is seen with ovoid- or square-shaped teeth, and such contact area is situated more towards the incisal edge. Also, there is an accentuated scallop in both the soft and hard tissues, and, lastly, there is a well-defined interproximal peak of bone supporting such papillae.

When teeth are lost, there is an inevitable remodeling process of such interproximal peaks of bone, to the point where it becomes impossible to support long natural soft tissues interproximally. The choices we must manage this soft tissue deficiency are either leaving a black triangle (which patients often dislike) or broadening the contact area, therefore creating a more squarish-looking tooth.

It should be noted, however, that for those everyday situations where we are dealing with vertical ridge defects, incorporating pink ceramics to compensate for the vertical ridge defect becomes important in provoiding teeth with pleasing proportions. In these cases, choosing triangular-shaped teeth and incorporating interproximal pink ceramics is definitively doable if this is something the patient desires.

So once again, to preemptively manage patients' expectations, it is essential to talk about these biologic limitations regarding tooth contour.

close up of front teeth restorations
Figure 5: Due to the remodeling process of removing teeth and placing implants, tooth contour for an “all-white prosthetic restoration” usually is more squarish. Conversely, when a vertical defect requires pink ceramics, the patient can choose any contour, as all potential soft tissue deficiencies can be compensated.

3. Arrangement: Keeping It Natural

Arrangement refers to the composition of the teeth — in other words, how one tooth relates to the adjacent teeth. A more natural arrangement is one where we can see subtle imperfections or asymmetry across the smile. Teeth move due to age, so incorporating slight rotations can significantly improve the smile's natural look.

As we discussed earlier with color and patients wanting a perfectly white shade, a perfectly aligned and symmetrical arrangement in an adult patient usually is indicative of a “not so natural” smile. We should embrace the opportunity to educate our patients regarding our perception of tooth arrangement, and a common “imperfection,” which is usually age-related, is dental wear. This will typically manifest as decreased interincisal angles among the anterior maxillary teeth. An arrangement that factors in this reality will appear more natural.

close up of front teeth restorations
Figure 6: Communicating a modification of the interincisal angles can be achieved digitally.

4. Position Parameters: The Fundamentals

When it comes to position, we need to break it down into four additional fundamental parameters:

1. Midline

Ideally, we should consider the patient's facial midline, a line that dissects the patient's face in two halves, as a reference. The “cupid's bow” in the upper lip typically serves as a closer reference to use as we zoom into the smile, as well as when determining the position and orientation of the prosthetic dental midline in our implant-supported reconstruction.

Remember that most patients are not facially symmetric, making it tricky to “nail down” the midline. The key is that our prosthetic midline should be parallel to a line that dissects the patient's face and perpendicular to a horizontal line depicting the horizon.

2. Incisal Plane

This is usually called the smile line, which results when we connect the incisal edges of the six anterior teeth. This incisal plane should follow the lower lip and be parallel to the horizon and therefore perpendicular to the midline.

The incisal plane needs to be evaluated in both a frontal perspective and a sagittal perspective, as its position is closely interdependent with the patient's lips.

From a frontal perspective, we want to ensure that there is at least minimal incisal edge display in repose, so patients do not have an “edentulous look.” So, depending on the patient's age and gender, we may consider such incisal display anywhere from 1mm to 3mm.

From a sagittal perspective, the antero-posterior position of the incisal edge should provoide adequate and pleasing lip support. The references that we follow to attain this are both from the orthodontic world:

  1. Ricketts “E” plane: A line from the tip of the nose to the tip of the chin viewed sagittally.
    • Upper lip 4 mm behind the plane
    • Lower lip 2 mm behind the plane

    It should be noted that different ethnicities will have varied sizes of noses and lips.

  2. Andrew's line: Antero-posterior relationship of the maxillary incisor to the forehead.

    We must correct the patient's head posture to use this as a reference. And the goal is to have the facial aspect of the maxillary incisor on the same plane as the glabella.

3. Occlusal Plane

The imaginary line that dissects the cusp tips of the posterior teeth, which needs to be a distal projection or continuation of the incisal plane.

It should be evaluated from a frontal perspective intraorally and extra-orally. To verify that the orientation of the incisal and occlusal planes is “somewhat parallel” to the horizon, there is a specific photograph you want to get.

As photographers, we tend to “compensate through the lens” by tilting our camera whenever we see an orientation discrepancy. Doing this is a mistake, as it perpetuates discrepancies when moving forward to the fabrication of the definitive restorations—and dealing with these discrepancies and correcting the orientation of the occlusal plane should be addressed sooner rather than later.

Therefore, to accurately capture the orientation of the incisal and occlusal planes, we need to take an extraoral picture using plastic lip retractors and ask the patient to smile with an upright head posture. This allows us to take the lips momentarily out of the equation and focus our attention on assessing the orientation of the incisal/occlusal plane of the prototype relative to the horizon.

patient wearing retractor, revealing full set of teeth
Figure 7: Retracted lips to evaluate the orientation of midline, incisal and occlusal planes.

Here, we must ensure we have a nicely harmonious parallel plane. If there are occlusal cants, it is now that the treating team needs to adjust accordingly (either additive or subtractive) before sending it back to the ceramist so it can be used as a reference for the fabrication of the definitive ceramic restorations.

Seeing minor cants of the incisal/occlusal plane at this stage of the game is not uncommon, so it becomes a crucial aspect in data transferring to ensure a successful esthetic integration.

Lastly, we need to assess the transverse position of the occlusal plane as yet another fundamental aspect of our esthetic, but also functional, checklist.

4. Gingival Outline

The treating team usually strives for relative symmetry when assessing the gingival plane or outline. Traditionally, the gingival margins of the central incisors and canines are leveled, and the margins of the lateral incisors are slightly coronal to them, or at least at the same level. It usually seems unharmonious to see the gingival levels of the lateral incisors in a more apical position than the centrals and canines.

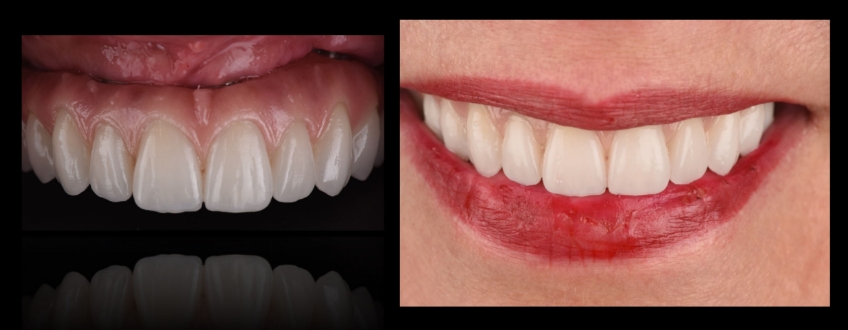

close up of front teeth with restoration (left), patient smile after insertion (right)
Figure 8: Once the information is transferred, the ceramic reconstruction is fabricated and inserted.

Talking about all these esthetic dentistry parameters with our patients needs to be part of an earlier discussion, but the prototype try-in should be a confirmation that every single aspect has been successfully dialed in and transferred so that the definitive ceramic outcome is 100% satisfactory for both the patient and the treating team.

4. Functional Parameters

The prototype try-in appointment is also critical from a functional standpoint, as it verifies that the laboratory has an accurate transfer of the occlusion and, therefore, can safely take the case to completion without the need for additional extensive occlusal adjustment.

Frontal views of both the prototype and the ceramics of a bimaxillary implant-supported reconstruction.
Figure 9: Frontal views of both the prototype and the ceramics of a bimaxillary implant-supported reconstruction.

This is particularly important since the most common materials of choice in contemporary implant-supported reconstructions have become the monolithic zirconia restorations or at least zirconia in the occlusal surfaces with a minimal cutback for overlaying ceramics in the facial aspect of the anterior teeth. Therefore, the treating team wants to minimize the occlusal adjustment needed during the insertion of the definitive prosthesis.

The occlusal scheme in full mouth implant-supported reconstructions consists of attaining multiple simultaneous, homogeneous, evenly distributed occlusal contacts in all posterior teeth, as well as the anterior teeth.

While assessing eccentric mandibular movements, the occlusal scheme we are looking for with these patients is to provoide shallow anterior guidance and a shallow canine rise to minimize the torsional stress applied to the restorative materials. (This is recommended when dealing with fixed restorations on both arches).

Once we adjust and verify the occlusal scheme on the prototype try-in appointment, it becomes extremely easy to transfer these functional parameters to the definitive ceramic restorations and avoid extensive adjustments during the insertion appointment.

Depending on how closely we attained these parameters with the previous provisional restoration, the treating team may choose to insert the prototype for some time so the patient can road test it and then provoide feedback so we can make changes accordingly.

There will be instances when we can nail most of these parameters with the initial provisional. The prototype will only be used to communicate specific details in which we need to enhance the transverse position of the posterior teeth and provoide a more pleasing buccal corridor. In this case, we can use a temporary cylinder to secure the prototype during try-in of the prototype.

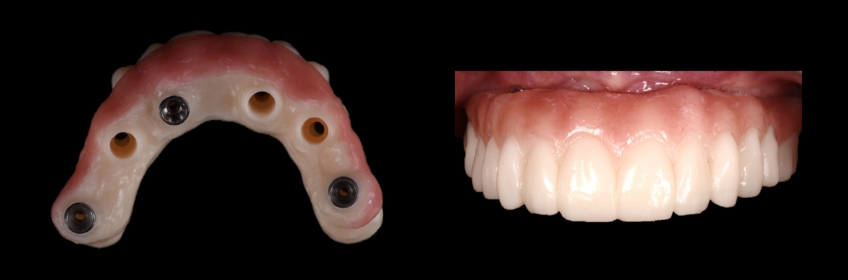

top view of prototype (left) and front view (right)
Figure 10: Only three temporary cylinders can be utilized to stabilize the prototype and assess the esthetic and functional parameters.

Once this is tried in and verified, it becomes straightforward to fabricate the definitive prosthesis.

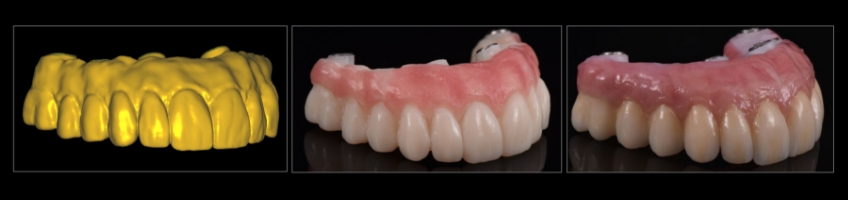

stages of digital design for prototype and ceramic restoration
Figure 11: Digital design – prototype and ceramic restoration following a linear workflow.

After reviewing this systematic assessment and the four key elements of esthetic dentistry, treating clinicians can appreciate the significant advantages of using the prototype as a fundamental step of treatment and convey this information to the patient as the ultimate opportunity to verify and validate that all esthetic and functional parameters are met before moving forward to the insertion of the definitive prosthesis.

full mouth post-insertion
Figure 12: Bimaxillary all-white restorations. A patient may need to “road test” the prototype prior to inserting the definitive ceramic reconstruction.
