Essential Criteria for Choosing Zirconia Abutments

Zirconia abutments can provide an esthetic alternative to metal abutments when implant restorations require a tooth-colored foundation. But they are not appropriate for every case. The key is to select them only when esthetics demands a tooth-colored abutment and the clinician can minimize the forces applied to the restoration.

That distinction matters because zirconia abutments are more susceptible to fracture than titanium abutments. Their fracture resistance also varies considerably based on abutment design, implant positioning, and the location and magnitude of occlusal forces.

When should dentists use zirconia abutments?

Zirconia abutments should be considered when two clinical conditions are met, in this order:

1. Esthetics require a tooth-colored abutment.
2. Occlusal and lateral forces on the abutment can be minimized.

If a tooth-colored abutment is not necessary, there’s little reason to accept the additional fracture risk associated with zirconia. With a skilled ceramist and today’s restorative materials, clinicians can often meet demanding esthetic goals without using zirconia abutments.

If esthetics do require zirconia, force management becomes critical. The clinician should evaluate implant position, restorative space, abutment dimensions, and anticipated occlusal loading before selecting the material.

Why can zirconia abutments fracture?

The primary concern with zirconia abutments is straightforward: They break more easily than titanium abutments.

However, not every zirconia abutment carries the same risk. Some are fabricated entirely from zirconia, including the connection to the implant. In the literature, this design is commonly described as a one-piece zirconia abutment, meaning the abutment and implant connection are milled from a single block of zirconia with no metal reinforcement other than the retaining screw.

This design can be particularly vulnerable to fracture. Zirconia does not match the strength of metal in thin cross-sections. As a result, abutment designs with excessively thin axial walls, which can occur because of implant positioning, are poor candidates for zirconia.

Research has also identified the internal implant connection as a particularly weak point in a zirconia abutment. Designs incorporating a secondary metal component at this connection provide greater strength than those made entirely from zirconia.

How do occlusal forces affect zirconia abutments?

Even a zirconia abutment that has functioned successfully for years can fail quickly when the forces applied to it change.

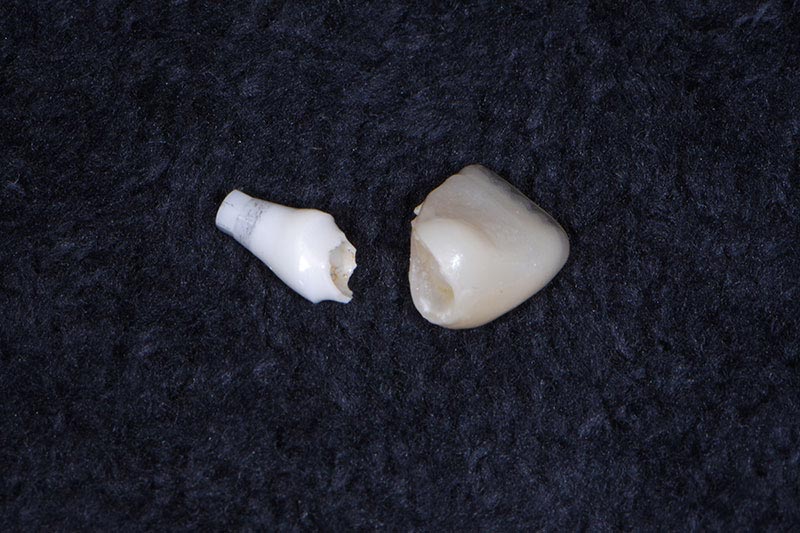

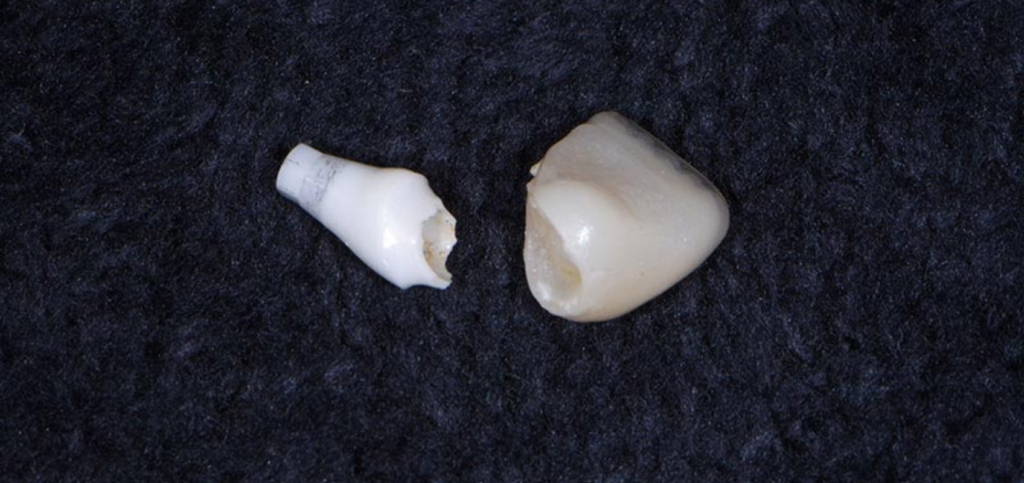

In one clinical case, a zirconia abutment had been in place successfully for more than five years beneath a crown designed to minimize forces on the abutment. Another dentist subsequently placed a new crown. Within five days, the abutment fractured. The material had not suddenly changed. The forces acting on it had.

This case reinforces an important principle: Selecting zirconia abutments cannot be separated from occlusal planning. When zirconia is necessary for esthetic reasons, clinicians should minimize the forces applied to the abutment.

In this particular case, there was one fortunate outcome. The abutment fractured in a way that allowed it to be grasped and removed. Had the forces instead damaged the implant itself, the complication could have been considerably more serious.

Clinical takeaway: Evaluate the entire implant-restoration system rather than the abutment material alone. A restoration that changes how forces reach the abutment can change the risk of failure.

What is the difference between one-piece and hybrid zirconia abutments?

Once a case meets the criteria for zirconia use, the next decision is whether to use a one-piece or a hybrid zirconia abutment.

Custom zirconia abutments can be created by scanning a wax-up and milling the abutment or through a completely digital CAD/CAM workflow. Either approach can produce a one-piece zirconia abutment or a hybrid design incorporating a metal insert or secondary metal component at the implant connection.

The clinical difference between these designs is more important than the fabrication method.

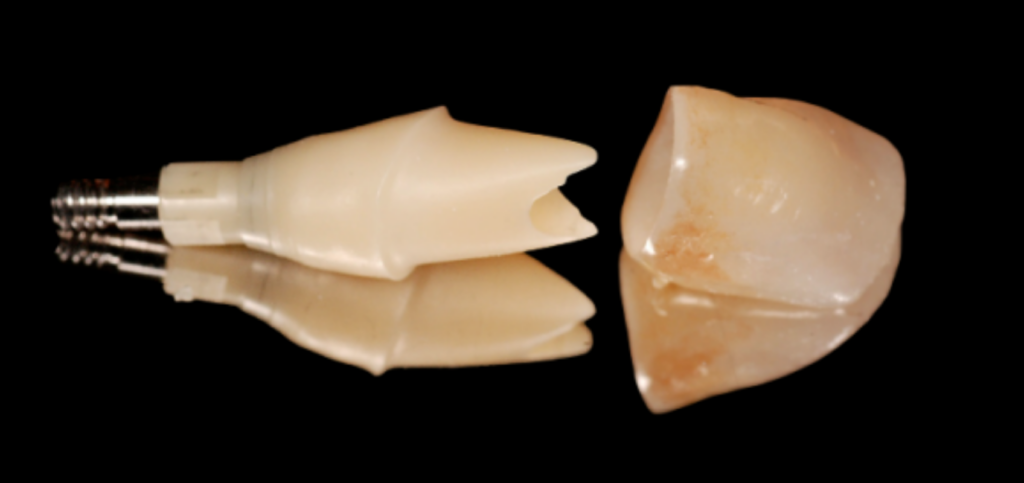

What is a one-piece zirconia abutment?

A one-piece design is fabricated entirely from zirconia, with no metal reinforcement other than the retaining screw.

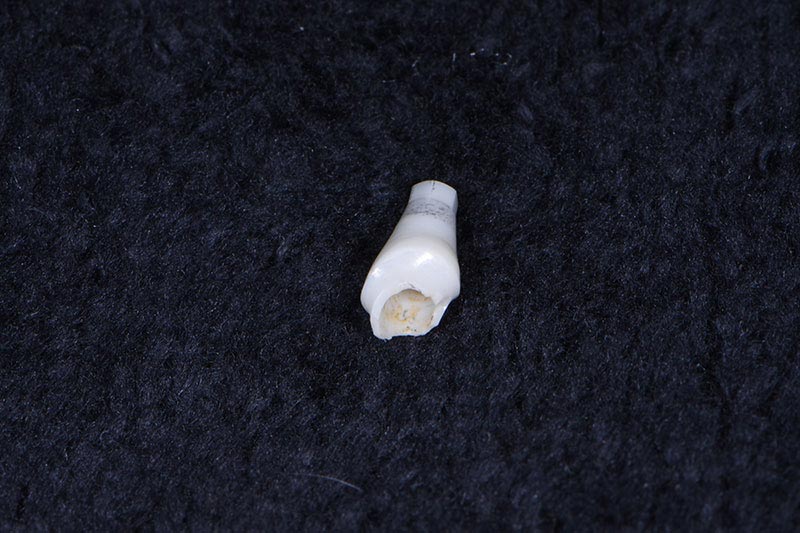

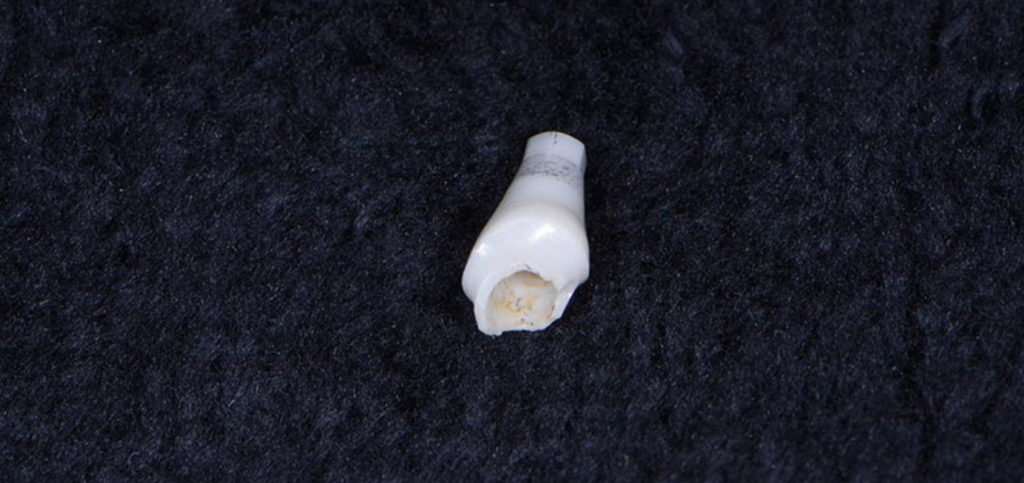

In two clinical cases involving this design, both abutments fractured at the internal connection. This is consistent with research identifying the internal implant connection as one of the weakest areas of an all-zirconia design.

One case involved a patient who had lost anterior teeth and ridge structure to trauma. Following ridge augmentation, implants were placed at the #8 and #10 sites and restored with a three-unit implant-supported fixed partial denture using custom one-piece zirconia abutments.

Less than a week after insertion, the patient reported that the bridge felt loose. Examination revealed that the zirconia abutments had fractured at the level of the internal connection.

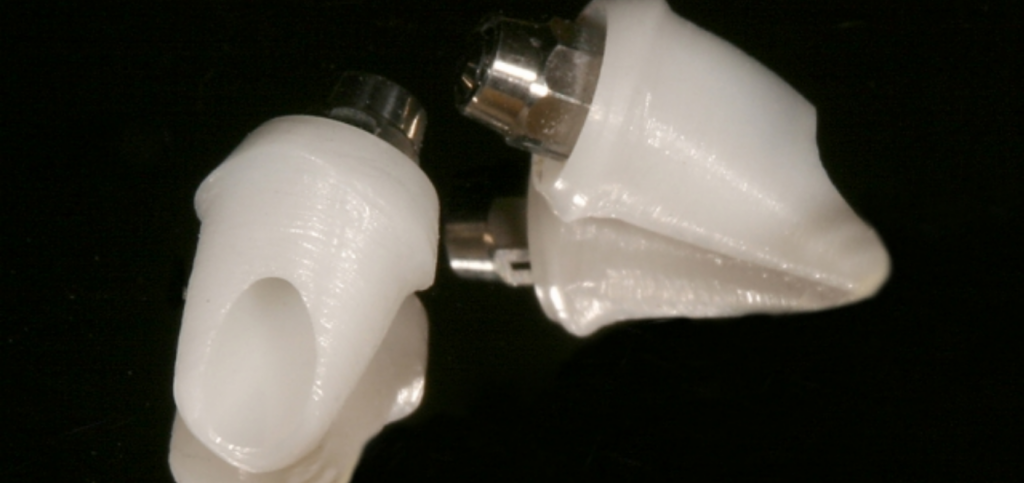

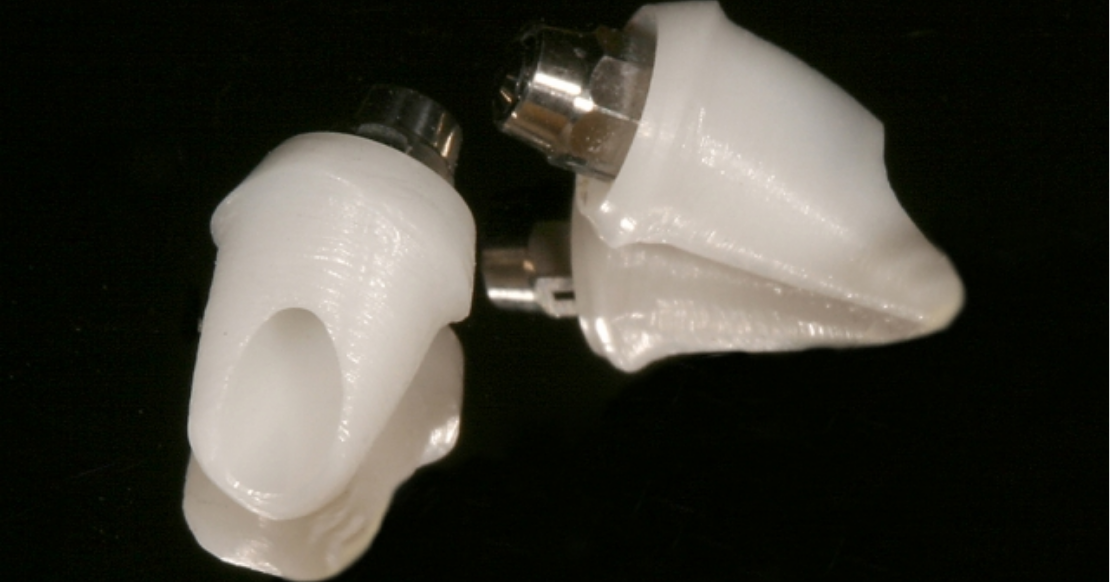

What is a hybrid zirconia abutment?

A hybrid zirconia abutment combines zirconia with a metal component, typically titanium or gold, at the implant connection.

This design creates a metal-to-metal interface between the abutment and implant while allowing the visible portion of the abutment to retain the esthetic advantages of zirconia. The metal component can also support the zirconia and reduce the risk associated with an entirely zirconia connection.

Hybrid designs have their own considerations. The metal base and zirconia can potentially separate, and unsupported zirconia remains vulnerable to fracture.

When a zirconia abutment is indicated, however, a hybrid design with a secondary metal component at the internal connection generally offers greater strength than a fully monolithic design.

Can one-piece zirconia abutments affect the implant?

Fracture is not the only consideration with a one-piece zirconia design.

Research has found greater wear at the titanium implant interface when a titanium implant is connected to a one-piece zirconia abutment compared with a titanium abutment. That means clinicians should consider the interaction between the abutment and the implant itself, not simply whether the zirconia restoration is likely to fracture.

This is another reason to be cautious with an all-zirconia internal connection.

Which zirconia abutment design should dentists choose?

When zirconia is clinically necessary, a hybrid-style abutment is generally preferable, particularly when the case allows fabrication of a custom tall titanium base.

The titanium base can provide retention for the zirconia structure, support it, and reduce the likelihood of fracture compared with a 100% zirconia abutment.

Case selection remains essential. Zirconia abutments should generally be favored in lower-force situations, with anterior sites typically offering a more favorable environment than posterior sites.

Before selecting an abutment, ask:

• Does the case truly require a tooth-colored abutment?
• Can occlusal and lateral forces be minimized?
• Does the implant position provide adequate zirconia thickness?
• Can a hybrid design provide a metal-to-metal implant connection?
• Is the site appropriate for the mechanical limitations of zirconia?

If the answers raise concerns, titanium may provide the more predictable restorative option.

What is the key to successful zirconia abutment selection?

Successful use of zirconia abutments depends less on their esthetic potential than on disciplined case selection. Use zirconia when esthetics genuinely require a tooth-colored abutment, then evaluate implant position, material thickness, abutment design, and anticipated forces before proceeding.

When zirconia is indicated, a hybrid design with a secondary metal component at the implant connection can reduce some of the mechanical disadvantages associated with an all-zirconia design. The goal is not simply to choose the most esthetic material. It is to create an implant restoration that balances esthetics with predictable long-term function.

Contributing Author
Dr. Greggory Kinzer
