Author’s Note: Since this article was published in 2018, many people have reached out to ask about the concept of deep margin elevation. This conservative technique for restoring teeth with subgingival margins can be useful for both direct and indirect restorations, and avoids the removal of bone and surgical treatment often necessary to access and restore teeth with subgingival margins.

Additional research has emerged since 2018 that further supports the benefits of utilizing deep margin elevation techniques for restoring teeth. Below, you’ll also find an additional technique dubbed the “Belknap band” that was introduced to me by my colleague and friend Dr. William Belknap to help with adaptation of the matrix band for this procedure. Hopefully you enjoy learning more about this concept, and are able to utilize it for patients who present with subgingival margins.


Subgingival margins present as a common clinical challenge. In cases where subgingival margins are present, deep margin elevation can be a useful technique to help restore teeth to the proper form and function.

What is deep margin elevation? In essence, this procedure involves placing a material to raise the restorative margin to an equigingival or supragingival location. Some of the earliest work published on the concept came from Dietschi and Speafico in 1998.

This technique has been referred to by many different names, including the “open sandwich technique,” “proximal box elevation,” and “margin elevation technique.” The concept gained traction in 2012 when Pascal Magne discussed the concept as a paradigm shift for direct and indirect restorations.

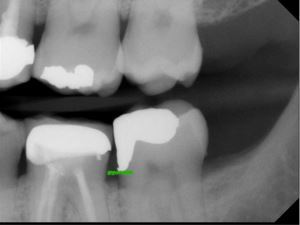

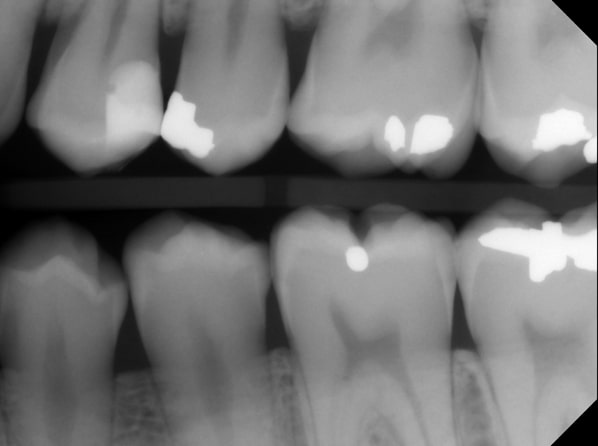

Pre-op radiograph

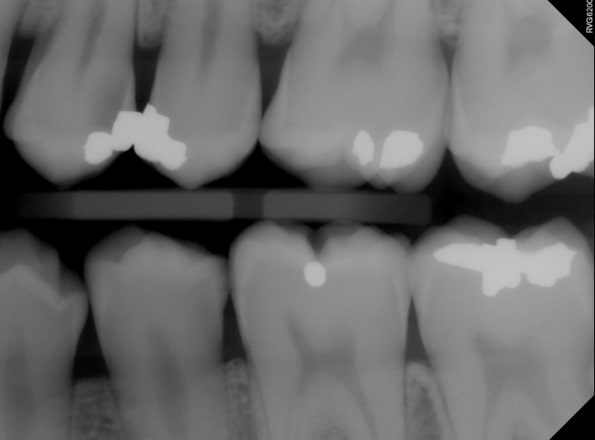

Post-op radiograph of ceramic crown with deep margin elevation

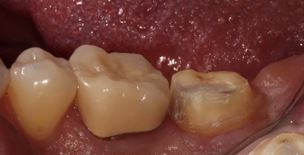

Crown preparation utilizing deep margin

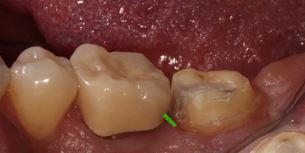

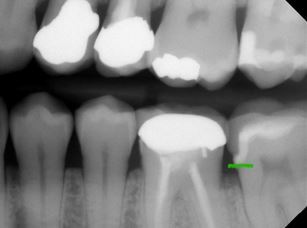

Green line showing the area of deep margin elevation

Since Magne reintroduced the concept, deep margin elevation has been gaining popularity as a way to raise indirect restoration margins supragingivally, especially for intraoral scanning. Margin elevation can be performed using a host of different materials, such as composites, glass ionomers or resin-modified glass ionomers.

How does deep margin elevation work? Once the subgingival aspect of the prep is completed, a matrix is placed and tightly adapted to the tooth structure. In most cases, a wedge is not placed, enabling the margin elevation to reproduce an appropriate emergence profile.

The tooth is treated using the etching and bonding protocol of your choice (for composite) or a tooth conditioner (for glass ionomer or RMGI). The material is allowed to flow passively against the matrix until it is at an equigingival or supragingival location.

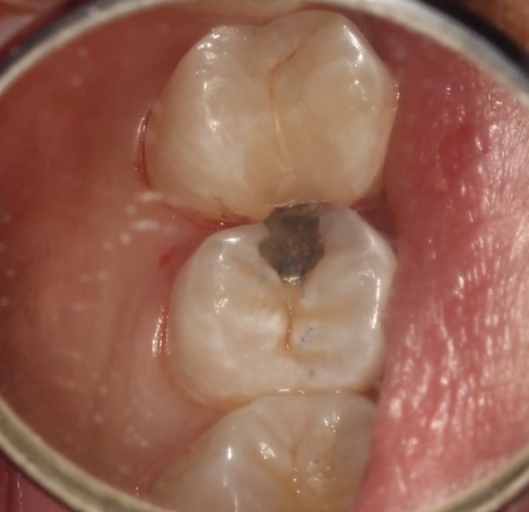

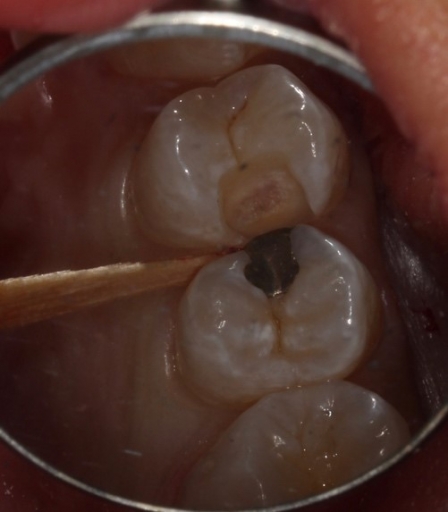

Subgingival preparation #12 DO

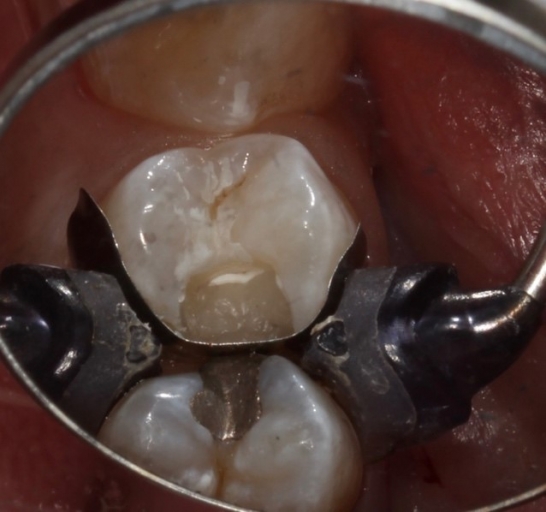

Deep margin elevation
Final restoration
Pre-op radiograph

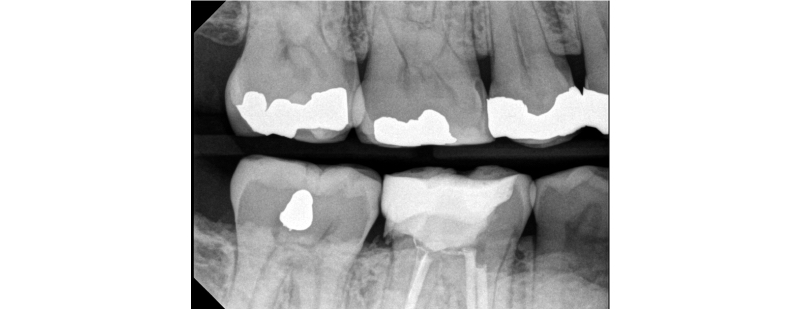

Post-op radiograph

Typically, a post-op bitewing is taken to confirm the proper adaptation of restorative material to tooth structure, especially when deep margin elevation is being used to elevate a margin for indirect restorations. When performed in a limited area, deep margin elevation can be utilized in close proximity to the bone with negligible effects on the biologic width.

In some cases, the matrix band may need to be adapted in order to accommodate the subgingival aspect of the prep. Either a #2 Tofflemire band or a modified #1 Tofflemire band can be used to extend the matrix to ensure an adequate seal of the margin elevation material to the tooth.

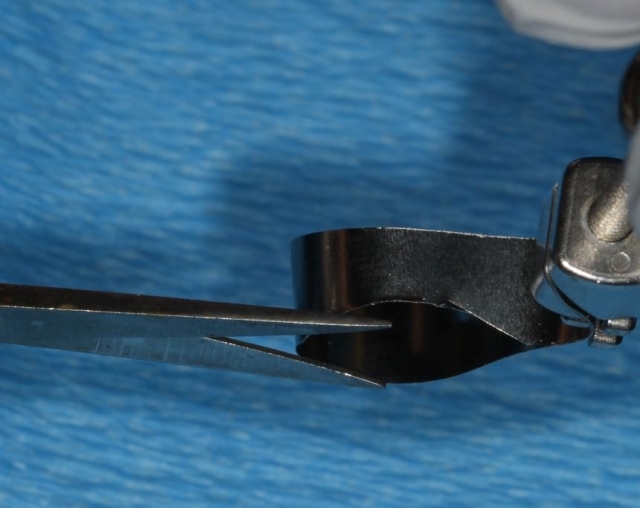

Modified #1 Tofflemire band. The band is cut using scissors on the opposite side from where the deep margin elevation will take place. This enables the band to seat further apically to facilitate deep margin elevation.

Deep margin elevation has been shown to provide predictable long-term survival rates up to a decade after being performed. It’s yet another tool in our toolbox that can be used to manage subgingival preparations.

The Belknap band

After adapting the matrix band so it seats further apically, it may still be challenging to have the band rest flush against the tooth. In these instances, gingival tissue may be present between the matrix band and the tooth’s subgingival margin. This increases the risk of material extending beyond the margin, leading to overhangs that are extremely difficult to correct.

Overhang on the distal of #30 after a failed margin elevation attempt. The band was not flush against the tooth, leading to an overhang of the material.
Overhang on the distal of #30 after a failed margin elevation attempt. The band was not flush against the tooth, leading to an overhang of the material.

To overcome this, the “Belknap band” can be utilized. Named after my friend and colleague, Dr. William Belknap, who taught me this technique, Teflon tape is placed between the band and the adjacent tooth.

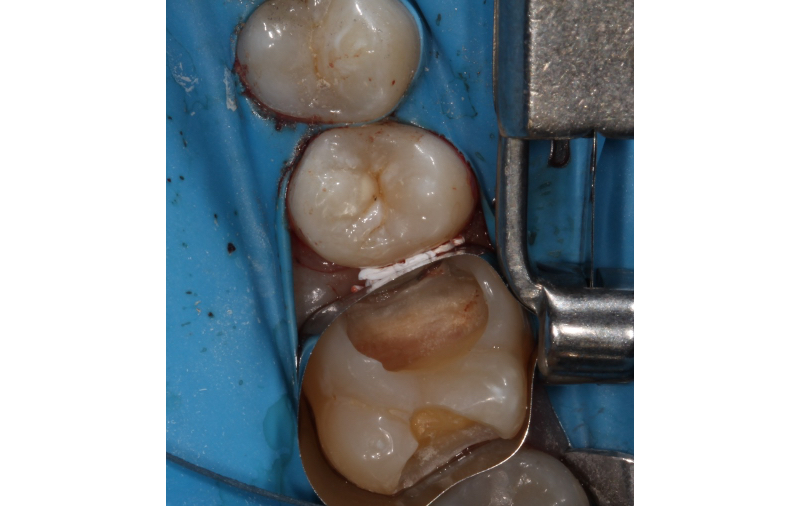

The Belknap band. Approximately 1-2 inches of Teflon tape is place interproximally between the band and adjacent tooth to ensure the band is flush against the tooth prior to starting the margin elevation procedure.
The Belknap band. Approximately 1-2 inches of Teflon tape is place interproximally between the band and adjacent tooth to ensure the band is flush against the tooth prior to starting the margin elevation procedure.

This ensures an intimate adaptation between the band and the tooth, which will enable the proper adaptation of restorative material during the margin elevation procedure. After the deep margin elevation technique is performed using the Belknap band, the Teflon tape and matrix band are removed, the new margin is refined, and the direct or indirect restoration can be completed.

Andy Janiga, D.M.D., is a contributor to Spear Digest.

References

  1. Dietschi, D. and Spreafico, R..  “Current clinical concepts for adhesive cementation of tooth-colored posterior restoration.” Prac Periodont Aesthet Dent 1998; 10(1): 47-54
  2. Magne, P. and Spreafico, R.C. “Deep margin elevation: A paradigm shift.” Am J Esthet Dent 2012; 2: 86-96
  3. Frese, C., et al. “Proximal box elevation with resin composite and the dogma of biologic width: Clinical R2-technique and critical review.”Operative Dentistry2014, 39-1: 22-31
