When talking to dentists, I am frequently asked about when or how to use diagnostic wax-ups (DWU), so I have decided to dedicate the next four articles to addressing multiple aspects of this topic.

pre operative photograph diagnostic wax up
Pre-operative photograph

I will be providing my insights as to how this valuable diagnostic tool can be used in your practice to establish a clear visual representation of the desired patient outcome to facilitate treatment planning and communication. This series includes:

  1. Why you should do a DWU
  2. When to complete the DWU (timing - 3 parts to this series)
  3. What type of technique should be used (additive only or reductive stone followed by additive wax)
  4. How to successfully communicate the desires and expectations of the clinician and patient to the laboratory technician

What is a diagnostic wax-up?

It is defined in the glossary of Prosthodontic Terms as “waxing of intended restorative contours on dental casts for evaluation and planning restorations; a wax replica of a proposed treatment plan. Comparable to trial dentures.”

I think of a wax-up as the foundation of the entire treatment plan, since it physically establishes the proposed outcome of esthetics and function. Guides, stents, templates and matrixes are made on the diagnostic wax-up, or a cast made from the wax-up, to aid in performing surgical and restorative procedures.

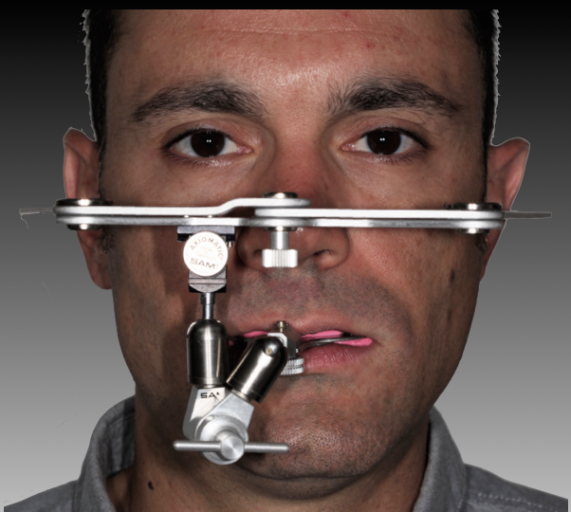

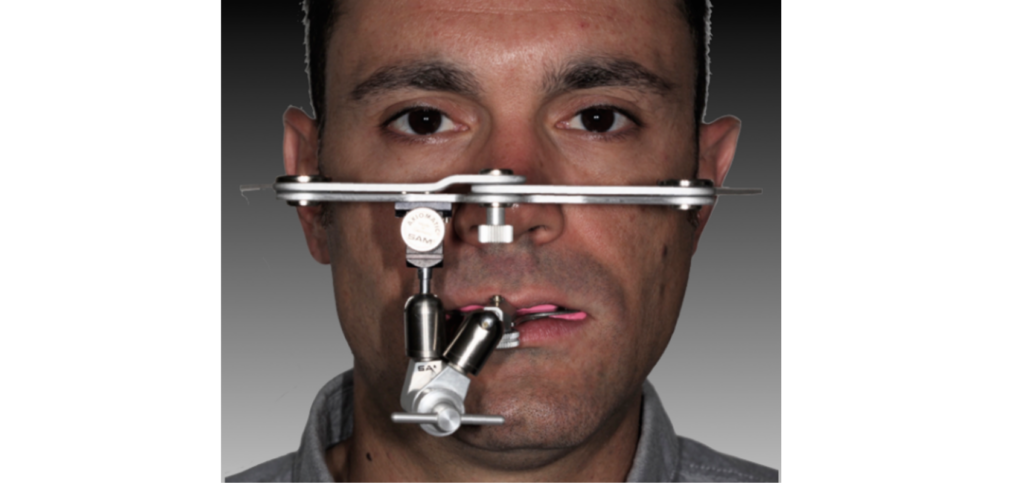

facebow transfer
Facebow transfer

Why you should do a diagnostic wax-up

Since a diagnostic wax-up is an outcome-based diagnostic tool, it should accurately represent the desired result of treatment. The clinician is responsible for accurately communicating on the laboratory prescription the desired outcome the technician is to create with the wax-up.

The instructions written on the prescription form should reflect the needs and expectations of the patient and the clinician. The laboratory’s responsibility is to establish the tooth position, alignment, inclination, morphology and occlusal scheme based on clinician directions.

It should not be arbitrarily done based on the technician’s interpretation of minimal clinical information. The greater the room for interpretation, the more likely clinician and patient expectations will not be met.

Diagnosis and treatment planning with a diagnostic wax-up

By completing a DWU before discussing the proposed treatment plan with the patient, the clinician can confirm that the plan is achievable. It is used as a diagnostic aid to establish the desired esthetic changes (tooth position, alignment, inclination, proportion and morphology) and develop or confirm the occlusal scheme and function.

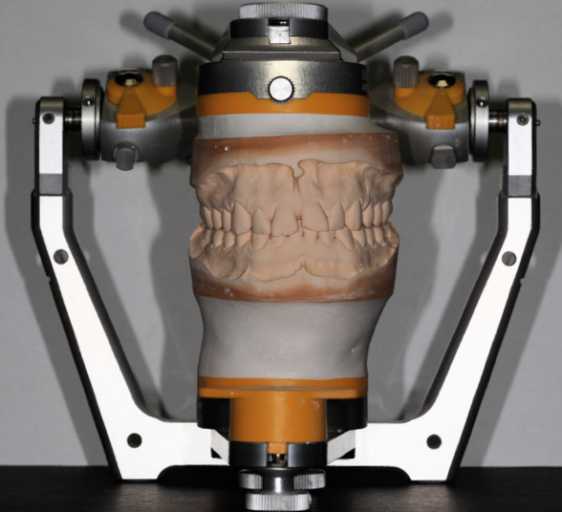

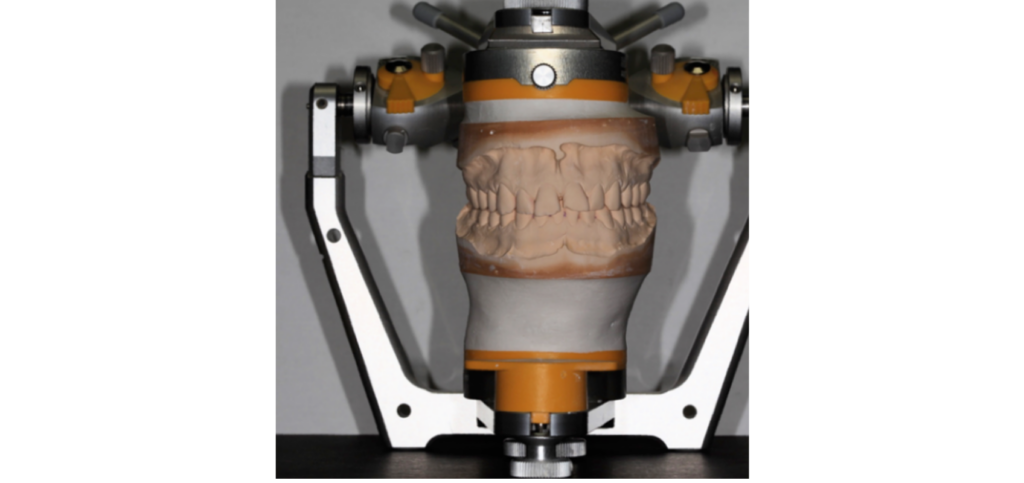

articulated casts for diagnostic wax up
Articulated casts

During the waxing process, it may be determined that the plan cannot be achieved from a functional perspective. For example, if you are restoring the maxillary arch and opening the vertical dimension, the diagnostic wax-up may indicate that there is no longer anterior contact with the mandibular anterior teeth. The anterior veneers that you had planned or that the patient requested will not work in this situation, because you will need to add ceramic on the palatal aspect of the upper teeth to reestablish contact with the lower anterior teeth to achieve the desired function.

This necessitates changing the plan from restoring the teeth with veneers to using crown restorations on the maxillary anterior teeth, or doing additional procedures on the mandibular anterior teeth to establish contact.

Pre-treatment using a diagnostic wax-up

Some clinicians use the DWU as a visual aid to show the proposed treatment outcome to the patient. I will discuss using the DWU in this situation in the next article, as the appropriateness and timing of its use in this situation requires careful consideration.

Some patients may want to see the proposed esthetic changes in their mouth before accepting treatment. If this is the case, a DWU will provide the basis for creating an intraoral mock-up. This step only works well when there are minor changes proposed.

A stent made from the DWU and filled with provisional material (Luxatemp), is placed over the natural teeth and allowed to set. After the stent is removed, the mockup should closely represent the outcome proposed by the DWU. If significant changes in tooth position are proposed, the stent will be distorted when it is placed over the unprepared teeth that will be changed. Because of this distortion, using a mockup in this situation may defeat its intended purpose.

Utilizing the diagnostic wax-up during treatment

The DWU is used as a template for the desired outcome and is used to create the following treatment tools:

  1. Two different preparation silicone index/guides. Their use is critical for assuring that there is adequate space for the selected restorative material thickness to achieve strength and durability and to create the desired esthetic outcome.
    1. A palatal guide, which includes the incisal edge of the teeth.
    2. A window guide.

i. Pre-preparation: used to identify the surfaces of the teeth that are out of position when compared to the final restorative outcome. The identified areas must be reduced prior to creating a mock-up to prevent distortion of the stent.

ii. During preparation: used to confirm the depth of the final preparations.

  1. A copyplast stent. Used to create:
    1. The intraoral mock-up: pre-treatment evaluation and/or mock-up for final tooth preparation.
    2. Provisional restorations: provisional restorations will be used in trial therapy to evaluate the desired esthetic and functional changes. Any changes made in the provisional restorations should be incorporated into the design and fabrication of the definitive restorations.
  2. A provisional shell made before the preparation of the teeth.

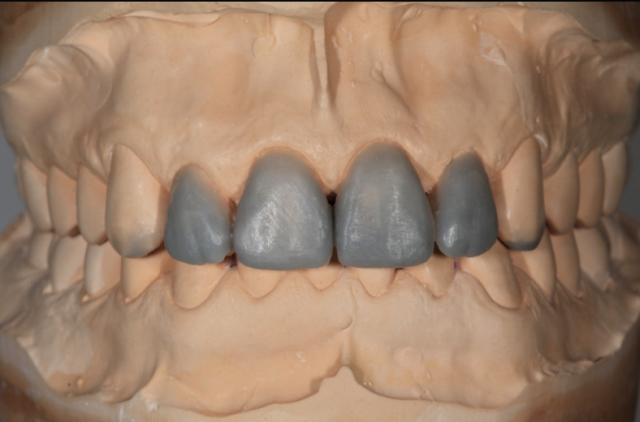

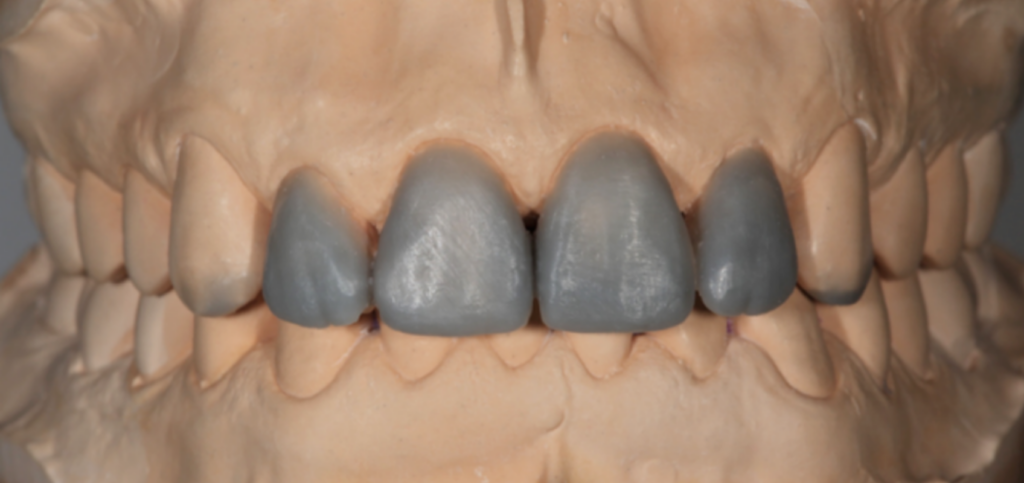

additive diagnostic wax up
Additive diagnostic wax-up completed

In the next article, I will be discussing when to complete a DWU. This will include recommendations for its use during treatment sequencing.

(Click this link to read more dentistry articles by Dr. Bob Winter.)

Bob Winter, D.D.S., Spear Faculty and Contributing Author
